SAMPLING SOLUTIONS
From off-the-shelf sampling kits to customized sample collection devices.
Smith-Root eDNA samplers & filter packs
We are proud to be New Zealand resellers of Smith-Root products, the world leader in waterborne eDNA sampling technology. Our selection includes purpose-built eDNA sampling systems featuring computer-controlled pumps for standardized, efficient, and mobile sampling. We also offer single-use filter packs designed for rapid filtration and easy preservation—eliminating the need for additional reagents while minimizing contamination risks.
Explore our available products here:

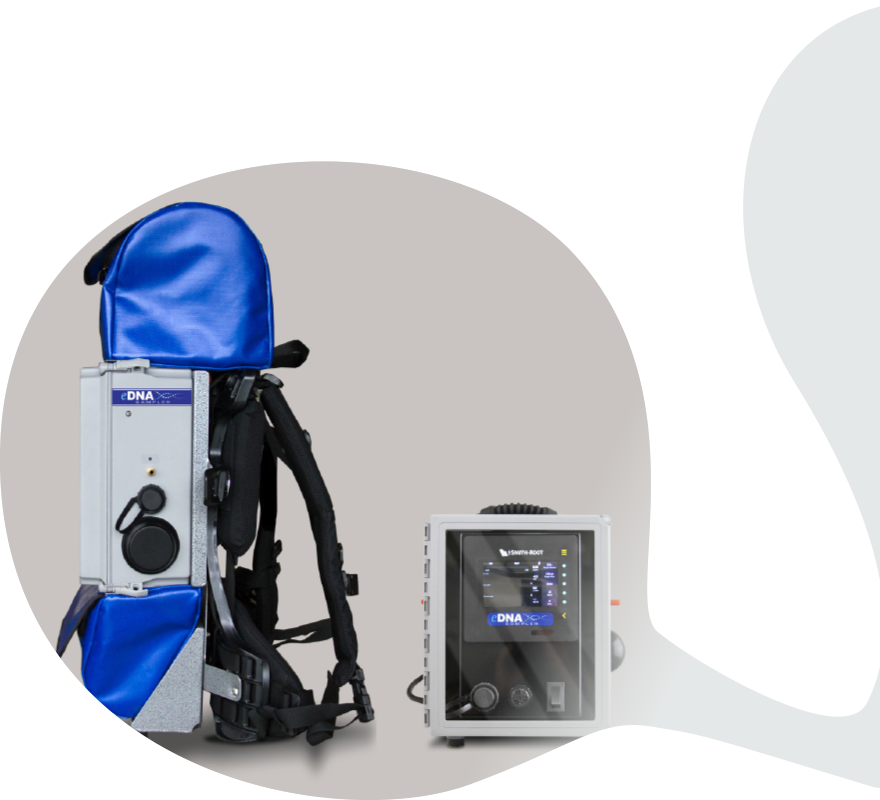

Patented computer-driven pump with sensor data features a compact design for enhanced replicability in eDNA sampling. Designed for use with Smith-Root eDNA filter packs, this water pump gives you the ability to program the sample volume, regulate filtration pressure, set specific flow rates and standardize your sampling process. With built-in USB metadata archiving (GPS, flow rate and pressure control), it provides a seamless solution for data tracking and is ideal for field transport.
Sensors
Minimum Flow Rate: 0.1 L/minute
Maximum Flow Rate: 1.4 L/minute
Maximum Measurable Volume: 999.9 L
Volume Accuracy: > 90% at 0.1 L/minute or higher flow
GPS System Compatibility: GNSS (GPS, Galileo, GLONASS, BeiDou)
Number Of Channels: 72
GPS, GLONASS Sensitivity: -167 dBm
GPS Position Accuracy: 2.5 meter
Pump
Ports: 0.25 inch ID Tubing
Priming Vacuum: Approx. 5 psi
Maximum Wetted Vacuum: 14 psi (96.5 kPa)
Communications
USB: 2.0
Log File Format: Comma Separated Values (csv)
Batteries
Sampler Battery: Choice of lithium or lead-acid batteries
Sampler Battery Life: 6 to 8 hours
Remote Control Battery: 1900mAH 1.2V NiMH
Remote Control Battery Life: Approx. 4 hours
Size and Weight
Backpack Sampler Size and Weight
Height: 30.5 in. (77.5 cm)
Width: 16.4 in. (41.65 cm)
Depth: 15 in. (38.1 cm)
Weight: 24 lb. (10.89 kg) without battery
Remote Control Size and Weight
Height: 4.7 in. (11.94 cm)
Width: 2.5 in. (6.35 cm)
Depth: 0.94 in. (2.39 cm)
Weight: 0.4 lb. (181.4 g)
Remote Control Battery Weight 0.1 lb. (45.4 g)
Specifications subject to change without notice.

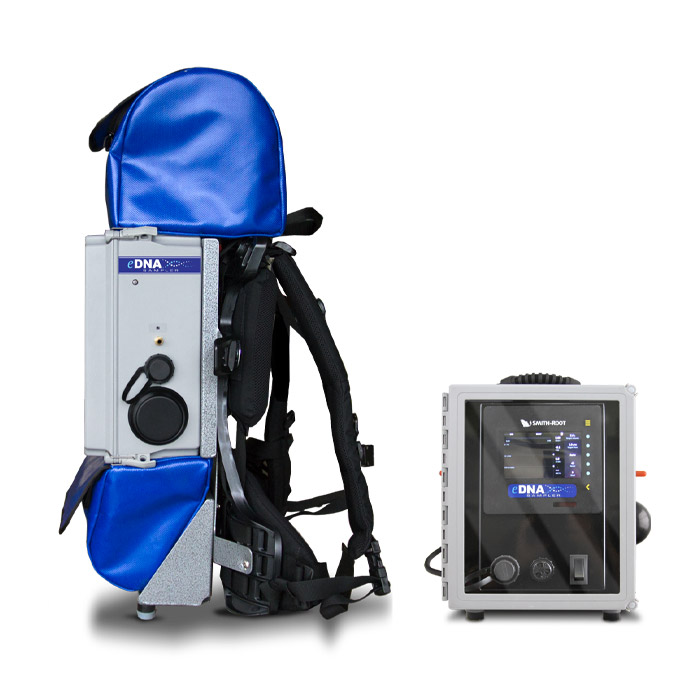

The same smart pump is available in a backpack model. Ideal for mobile sampling, can be equipped with telescoping pole and trident pole for easy water access and collecting triplicate samples simultaneously.

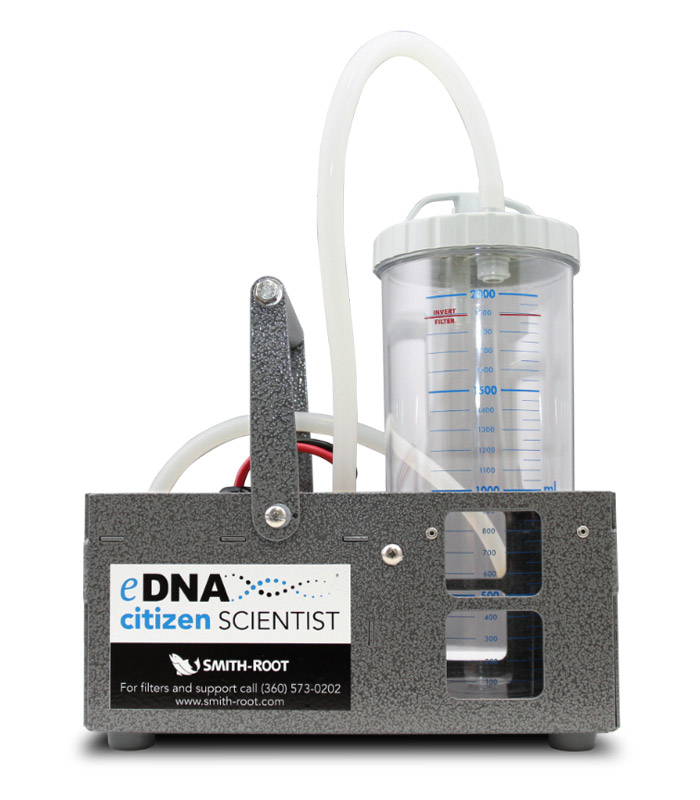

A cost-effective solution designed for sampling networks, this compact system is easy to transport and includes everything needed for rapid, high-quality eDNA collection with minimal training. When paired with eDNA filter packs, it enables high-volume filtration in seconds, all with the simplicity of single-button operation.
eDNA Citizen Scientist Sampler Specifications:
Pump Type: Diaphragm air pump
Voltage: 12V DC
Battery Life: 6 to 8 hours
Flask Volume: 2 liters
Vacuum Tubing Size: 0.25 inch ID
Filter Compatibility: All Smith-Root eDNA Filters
Size and Weight:
Height (with bottle and hose): 15.5 in. (39.37 cm)
Height (no bottle): 6.5 in. (15.24 cm)
Width: 11.38 in. (28.90 cm)
Depth: 7.5 in. (19.05 cm)
Weight (with battery): 10.4 lb. (4.71 kg)
Weight (without battery): 5.3 lb. (2.40 kg)

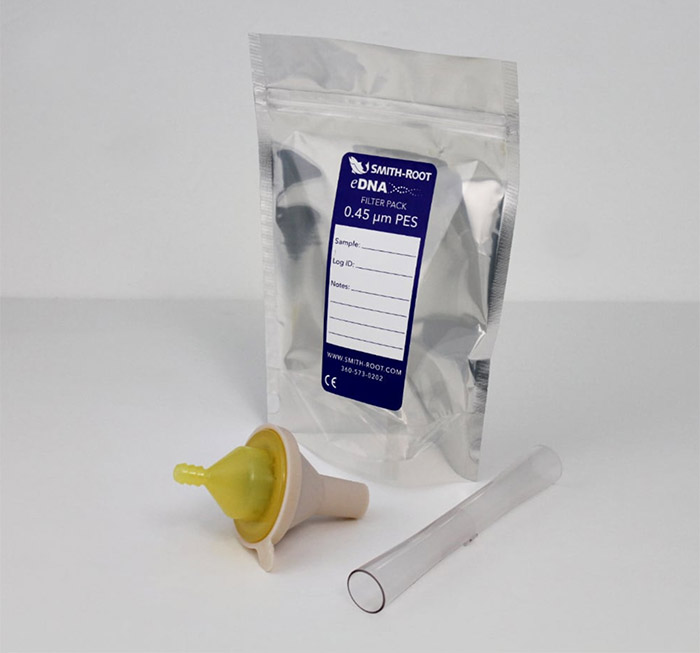

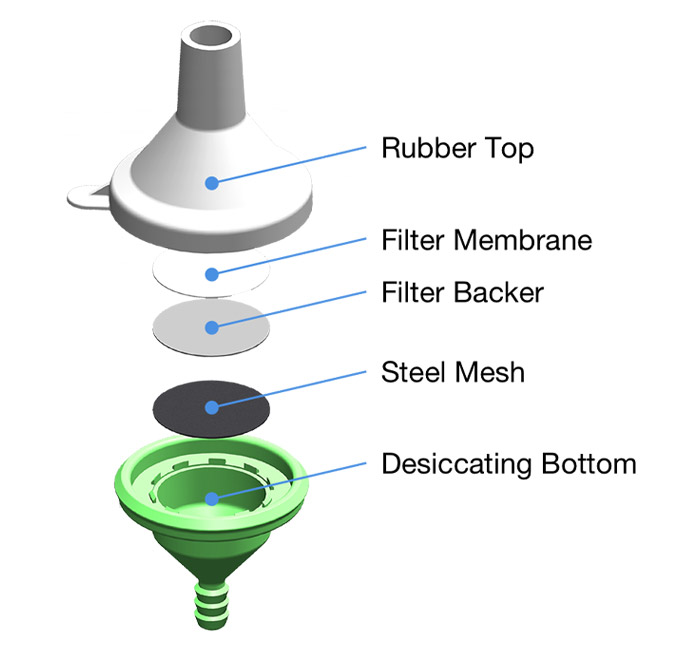

The innovative self-preserving filters are designed to maximize DNA yield per liter of water while enabling automatic preservation through desiccation. Simply return the filter to its original packaging—no additional reagents required.
Available in multiple pore sizes and materials, these filters allow you to customize your setup to fit your project needs. Each pack includes a preloaded inline filter, forceps, and a tubing extension, ensuring seamless integration with Smith-Root samplers or your own sampling system.
For deeper water sampling, a specialized adapter connects the filter housing directly to a Niskin bottle, enabling immediate filtration of collected samples for eDNA analysis. Backed by extensive scientific research, Smith-Root eDNA filter packs offer a reliable and efficient solution for your sampling needs.
eDNA Filter Packs Specifications:
Operational vacuum pressure: 0 to 12 psi (-24.4 inHg)
Operational temperature (ambient): 0 to 40° C
Pump tubing connection: 0.25 inch ID, 0.5 inch OD silicone tube
Filter membrane material: PES (call for additional options)
Filter pore size: 0.45 µm,1.2 µm, 5.0 µm (call for additional options)
Sterilization: Not gamma sterilized (clean-room assembly)
Suggested filtration volume: 1 to 10 L
Storage temperature (air): 22° C
Contact us to get a quote for the Smith-Root eDNA sampling products and make an order.

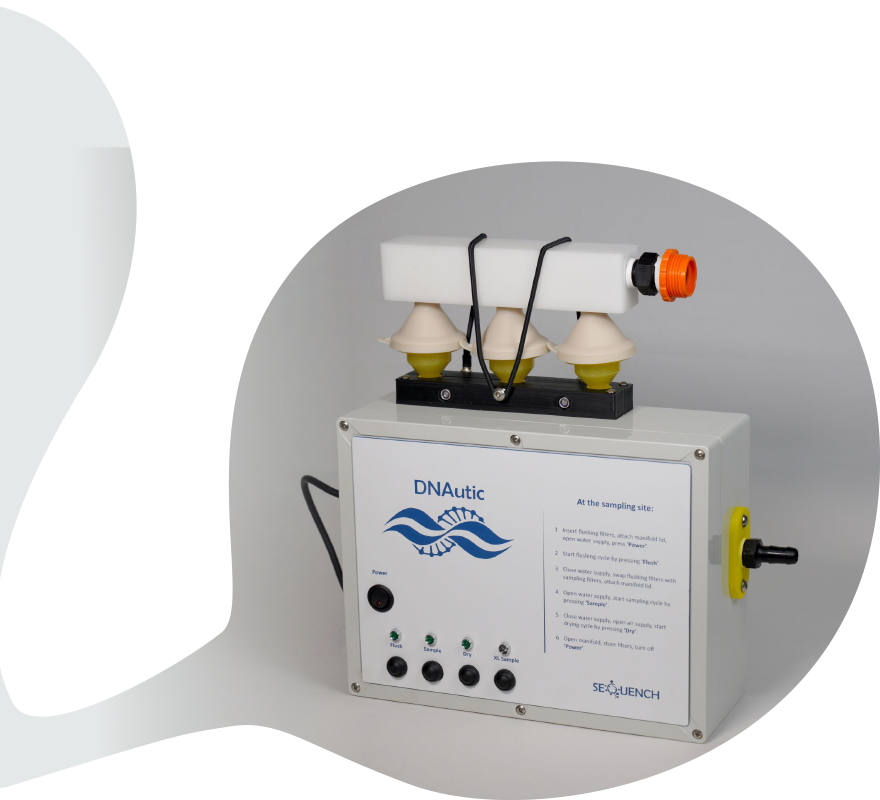

DNAutic eDNA sample collector
To equip citizen scientists and commercial vessel operators with an easy-to-use eDNA sampling solution, we developed the semi-automated DNAutic device. Designed for seamless operation in freshwater and marine environments, it is fully compatible with Smith-Root self-preserving eDNA filter packs.
- Versatile Power Options – Easily connects to a 12V power source or battery.
- Flexible Installation – Integrates into existing intake pipework or operates as an independent system.
- Contamination Control – Built-in flush cycle minimizes cross-contamination.
- Efficient Sampling – Collects triplicate samples sequentially (~5–7L per sample) at the push of a button.
- Optimized Preservation – Dry cycle enhances desiccation of self-preserving filters.
- Durable & Field-Ready – Robust polycarbonate (IP67-rated) case with replaceable components for field maintenance.
Successfully tested for en-route eDNA sampling on a racing yacht during a global solo race and on large commercial oceanic vessels, DNAutic is a reliable solution for high-quality, hassle-free sample collection at sea.
Power connection (12V): 5m marine cable (10m optional), 2 core, 0.75mm
Cable connection Connectors to Terminal: F2 (220V NZ/EU plug optional)
Max. working current: 2.8 Amps
Water supply inlet connection: Plastic Male Hose Tail for hose ID 12mm*
Water outlet connection: Plastic Male Hose Tail for hose ID 12mm
Switch resistor: 5 Amp
Length: 390mm
Width: 115mm
Height: 325mm
Weight: 3.1kg
Operating modes: FLUSH (all valves open for 1 min); SAMPLE (valves open sequentially, 2 min each); DRY (valves open sequentially, 30 sec each); XL SAMPLE (valves open sequentially, 3 min each)**
*Can be adjusted to fit the existing pipework
**The parameters of the cycles can be changed by demand
Contact us to get a quote for the DNAutic instrument and make an order.

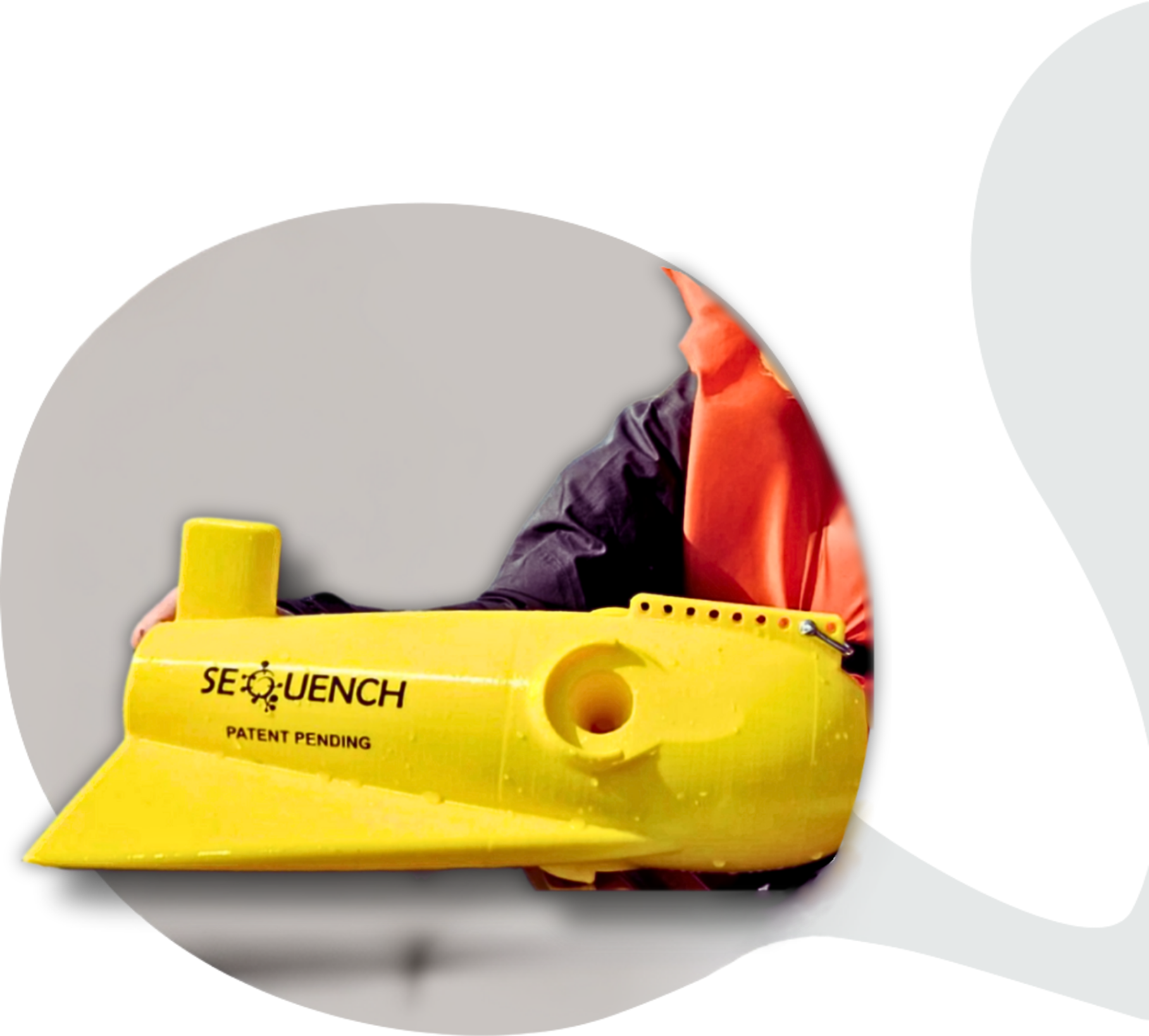

eQuip sampling system & filter kits
This original underwater sampling system was developed by Sequench with support from the Callaghan Innovation R&D fund. It allows concentrating waterborne eDNA without onboard pumps. Our patent-pending design uses a Venturi-based suction system: a narrow throat followed by up to three perimeter sampling openings. The pressure differential created by the Venturi effect enhances water intake and ensures consistent flow through the filter units mounted on each intake.
Explore eQuip products and specifications here:

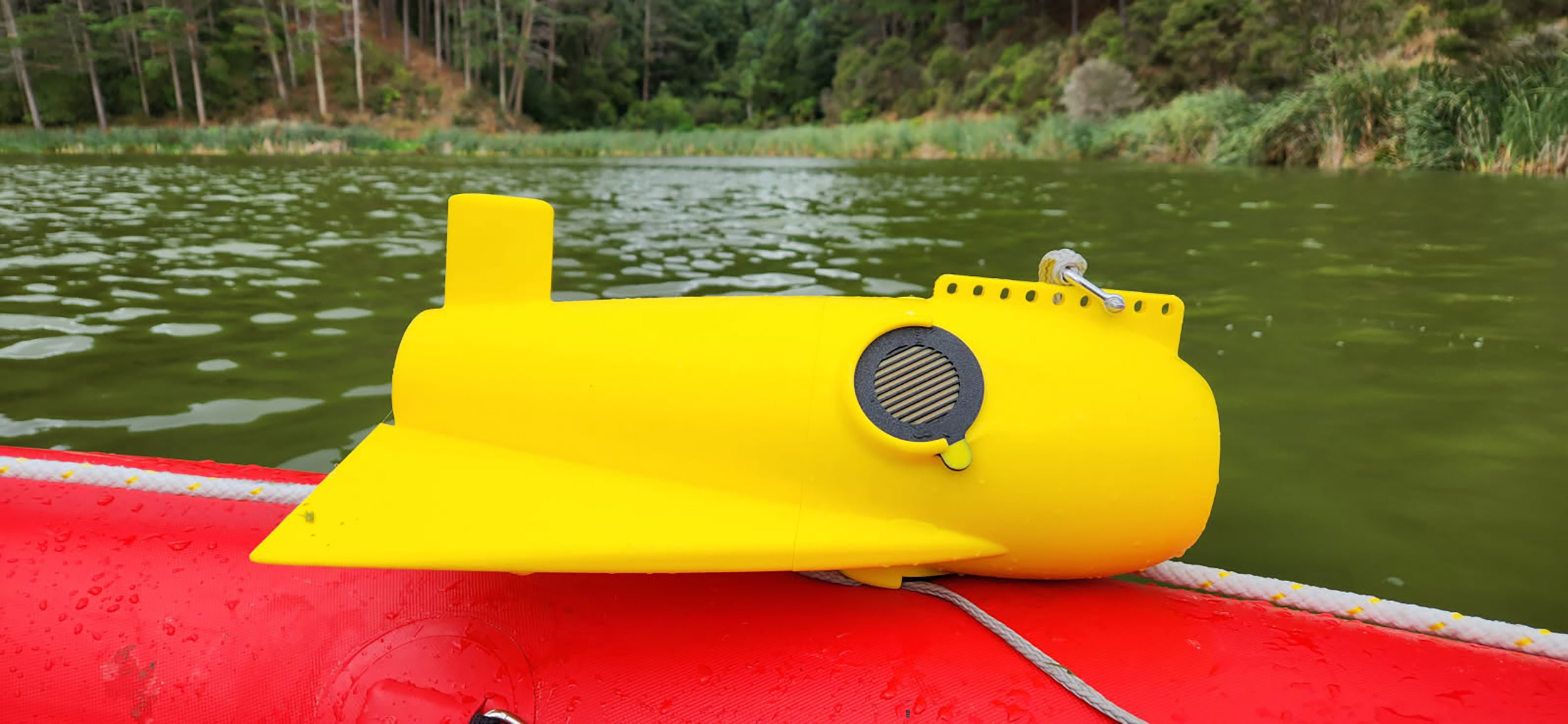

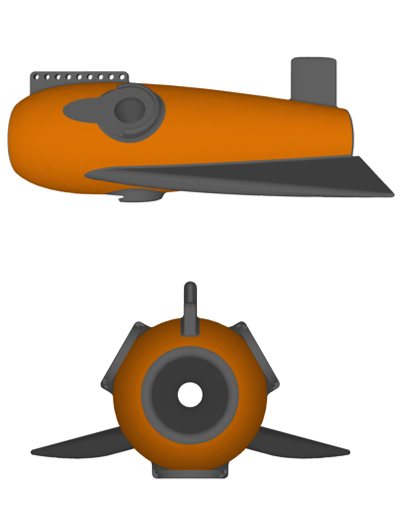

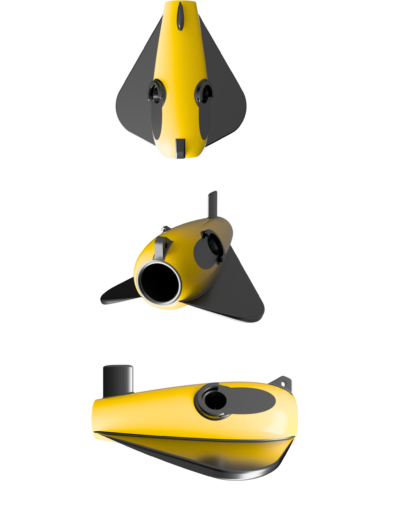

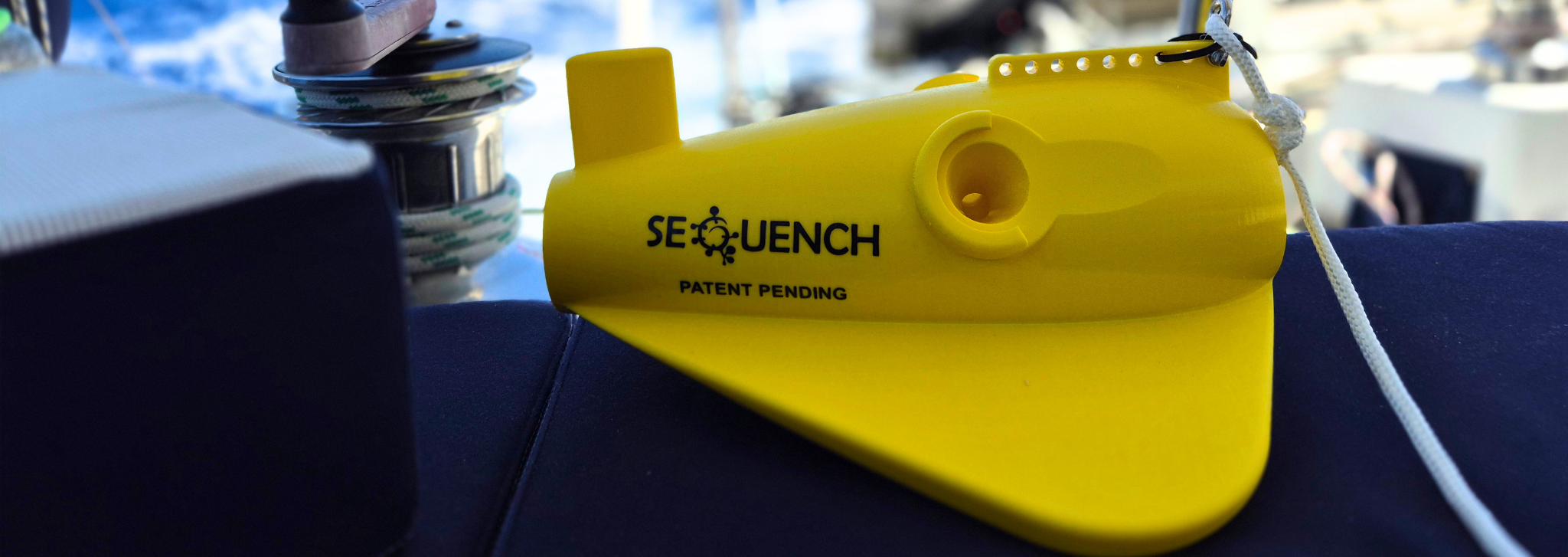

eQuip underwater sampler operates at cruising speeds up to 12 knots, delivering ~5–12 L/min per intake (speed-dependent) for high-volume eDNA capture and clean field workflows. Its teardrop hydrodynamic body minimises drag, while inverted planform lateral wings and directional fins keep the unit stable and on course during tow. The filter units are mounted onto outer parts of different sample collection systems with minimal handling interference, thus minimizing risk of contamination.
Proven on small motorboats, sailing yachts, and oceanographic vessels across lakes, coastal waters, and open ocean. With a weight depressor, the system can be submerged and towed to ~30 m depth.
Recommended towing speed: 6-12 knots
Approximate sampling depth: 1-2 m (depending on the speed and point of attachment)
Drag: 14 N (6 knots), 26 N (8 knots), 40 N (10 knots)
Modeled sample volume: 5-12 L/min (depending on the speed and sea conditions)
Attachment: Metal swivel (enclosed) for rope connection (not provided)
Size: 380 mm x 260 mm x 13 mm
Weight: 2 kg
Other possible operating modes: passively deployed at high-flow environments, attached to a ROV or AUV, attached to a water pumping device
Specifications subject to change without notice.

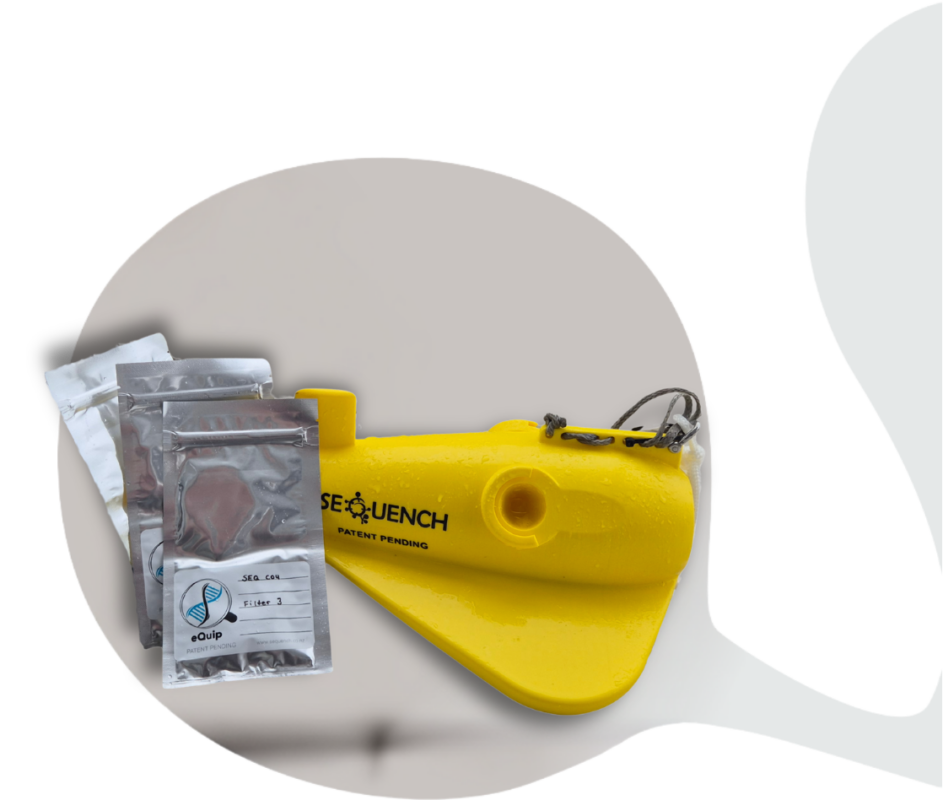

The filter kit consists of individually packed universal filter membrane holders made of recycled biomass-based plastic (PLA), designed to accommodate standard 47 mm diameter filter membranes. The inner ring securely holds the membrane during sampling and can be easily detached from the base by flipping the lip, allowing the membrane to be isolated for downstream analysis without excessive handling. The lip on the base also serves as a handle, enabling straightforward insertion and retrieval of the filter from packaging and sampling devices.
For sampling, filter units are removed from the pouch, inserted into the sample mounts, and deployed at 6–12 knots for 5–10 minutes, depending on sampling requirements. Following retrieval, the filter unit is removed using the holding lip, excess water is shaken off, and the unit is returned to the desiccation pouch for storage until processing, or the membrane can be transferred directly into a tube containing preservation buffer. The storage bag should be securely sealed to ensure effective preservation. If freezing is the preferred method, the filter unit can be stored directly in the sealed bag at −20 °C.
For enhanced preservation, particularly when extended storage prior to laboratory processing is expected, or when targeting low-abundance or potentially degraded eDNA signals (e.g. fish or other vertebrates), a buffer spray option is available. This approach has been validated through extensive field trials. The buffer is supplied in a 10 mL spray bottle (sufficient for approximately 25 filters), with four sprays applied directly onto the membrane immediately after retrieval and prior to placement into the desiccation pouch.
eQuip Filter Kit Specifications:
Operational temperature (ambient): 0 to 40° C
Package size: 120 mm x 210 mm
Filter membrane material: Nylon
Filter pore size: 5 or 20 um
Sterilization: Not gamma sterilized (clean-room assembly)
Suggested filtration volume: 1 to 30 L
Storage temperature (air): 22° C
Contact us to get a quote for the eQuip sampling products and make an order.
